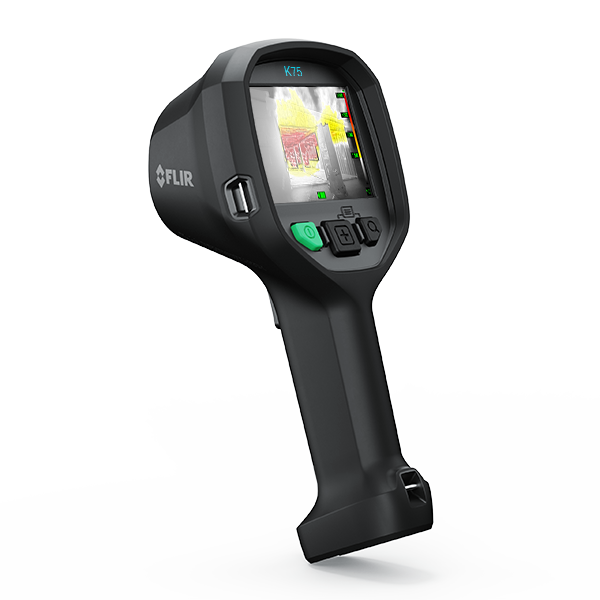

FLIR K75 Thermal Imaging Camera – Advanced Firefighter TIC with 320 × 240 Resolution
- SKU:
- 18704-0401
- MPN:
- 18704-0401
- Availability:
- Usually ships in 3 business days
Description
The FLIR K75 Thermal Imaging Camera is a rugged, NFPA-ready thermal imaging camera built for structural firefighting, search and rescue, and overhaul. It gives the whole crew enhanced situational awareness in smoke, darkness, and other zero-visibility conditions, with image quality and speed that hold up on the fireground.
The K75 features a 320 × 240 thermal detector, a bright 4-inch backlit LCD, and a fast 60 Hz display frame rate for smooth, lag-free imaging while moving through a structure. It measures temperatures from -4°F to 1202°F (-20°C to 650°C), includes FLIR FSX® image enhancement for critical detail, and is built to survive the heat, water, and drops of everyday fire service use.
- 320 × 240 thermal imaging to see through smoke and spot victims, track fire behavior, and assess structural risks
- Single-range solution operating -20°C to 650°C (-4°F to 1202°F) with no image freeze or delay when conditions change
- Search Mode and Detection Mode give faster insight into fire spread, victim location, and safety hazards
- FSX® (Flexible Scene Enhancement) digital image enhancement for clearer detail in low-contrast scenes
- Connects to the FLIR Responder App for camera configuration, over-the-air updates, live streaming, media handling, and reporting
- 4-inch backlit LCD display, 640 × 480, 60 Hz
- IP67 sealed housing, 2 m drop tested for fireground use
- Approximately 4 hours of battery operation per charge
Typical Applications
- Structural firefighting
- Search and rescue
- Overhaul and hot-spot checks
- Size-up and scene assessment
| Model | FLIR K75 Thermal Imaging Camera |
| IR Resolution | 320 × 240 |
| Display | 4" LCD, 640 × 480, backlit, 60 Hz display frame rate |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| Contrast optimization | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| f-number | 1.25 |
| Field of view (FOV) | 53° × 40° |
| Image Frequency | 30 Hz |
| Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Thermal Sensitivity/NETD | <60 mK |
| Zoom | 2x digital zoom |
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| Encapsulation | IP67 (IEC 60529) |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F); 150°C (302°F): 15 min; 260°C (500°F): 5 min |
| Battery Type | Li-Ion |
| Battery voltage | 3.6 V |
| Battery capacity | 6.2 Ah |
| Battery operating time | Approximately 4 hours |
| Charging system | Desktop 2-bay charger; optional in-truck charger |
| Charging Time | <3 h to capacity enough for 3 h operation |
| Accuracy | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Image Storage | Standard JPEG, stored in the camera |
| Image Storage Capacity | 200 files in total |
| Storage Media | Internal flash memory |
| USB | USB-C |
| Wi-Fi | Responder app streaming and over-the-air updates |
| Included | K75 infrared camera, Battery (2 ea.), Battery charger, Carabiner strap, Power supply, Printed documentation, Retractable lanyard 16 N (58 oz), Neck strap, Lanyard strap, USB cable |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Fire Service 2-5-10 Limited Warranty
The FLIR K75 Thermal Imaging Camera is a qualifying product under FLIR's Fire Service 2-5-10 Limited Warranty when the product is properly registered with FLIR within 60 days of the original retail purchase date.
- 2 Years: Product batteries
- 5 Years: Product components, excluding batteries and sensors
- 10 Years: Uncooled thermal camera sensor
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
