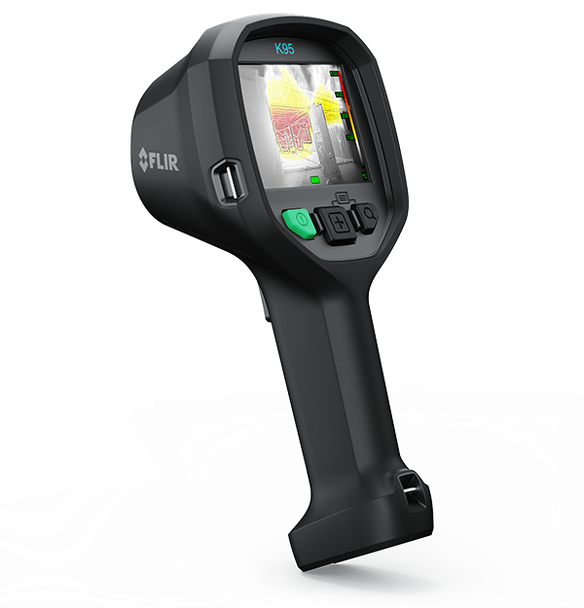

FLIR K95 Thermal Imaging Camera – 640 × 480 High-Resolution Firefighter TIC
- SKU:
- 18706-0601
- MPN:
- 18706-0601
- Availability:
- Usually ships in 3 business days
Description
The FLIR K95 Thermal Imaging Camera is a high-resolution 640 × 480 firefighting TIC designed for structural firefighting, technical rescue, and demanding emergency-response work. It delivers premium image quality and situational awareness when visibility is zero and decisions can't wait.
The K95 combines a 640 × 480 thermal detector with a bright 4-inch, 60 Hz backlit display, FLIR FSX® image enhancement, and measurement from -4°F to 1202°F (-20°C to 650°C). Its rugged, sealed construction stands up to heat, water, and impact on the fireground.
- Market-leading 95° × 74° field of view — the widest available in a firefighting TIC — reveals more of the scene in every glance
- 640 × 480 thermal resolution for premium image quality and enhanced scene overview
- Single-range solution operating -20°C to 650°C (-4°F to 1202°F) with continuous, freeze-free imaging
- Simplified live image display and minimal menu interaction keep firefighters focused on the scene, not the settings
- Wireless connectivity to the FLIR Responder App for configuration, live streaming, media handling, training, and post-incident review
- FSX® (Flexible Scene Enhancement) contrast optimization
- Rugged IP67-rated construction with 2 m (6.6 ft) drop resistance and high-heat performance (260°C for 5 min)
- Reduces the need for constant scanning and panning, helping crews read room layouts, movement paths, and fire development faster
Typical Applications
- Structural firefighting
- Search and rescue
- Technical rescue
- Size-up and overhaul
| Model | FLIR K95 Thermal Imaging Camera |
| IR Resolution | 640 × 480 |
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| Contrast optimization | Flexible Scene Enhancement (FSX®) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) | 95° × 74° |
| Image Frequency | 30 Hz |
| Non-radiometric IR video recording | MPEG4 to internal flash memory |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Pitch | 12 µm |
| Spectral Range | 7.5µm to 14 µm |
| Thermal Sensitivity/NETD | <70 mK |
| Zoom | 2x digital zoom |
| Drop | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Encapsulation | IP67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95 |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F); 150°C (302°F): 15 min; 260°C (500°F): 5 min |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Battery capacity | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Battery type | Li-Ion |
| Battery voltage | 3.7 V |
| Charging system | Desktop 2-bay charger; optional in-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | ≤3 h to capacity enough for 3 h operation |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| File Formats | Standard JPEG |
| Image Storage | Camera and Flir Responder app |
| Image Storage Capacity | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Interface | Update via OTA (Wi-Fi using the Flir Responder app); legacy support for updates from PC and data transfer to and from PC |
| Storage Media | Internal flash memory |
| USB | USB-C |
| WiFi | IEEE 802.11 b/g/n (2.4 GHz) |
| Included | Infrared camera, Battery (2 ea.), Battery charger, Carabiner strap, Power supply, Printed documentation, Retractable lanyard, 16 N (58 oz), Neck strap, Lanyard strap, USB cable |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Fire Service 2-5-10 Limited Warranty
The FLIR K95 Thermal Imaging Camera is a qualifying product under FLIR's Fire Service 2-5-10 Limited Warranty when the product is properly registered with FLIR within 60 days of the original retail purchase date.
- 2 Years: Product batteries
- 5 Years: Product components, excluding batteries and sensors
- 10 Years: Uncooled thermal camera sensor
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
