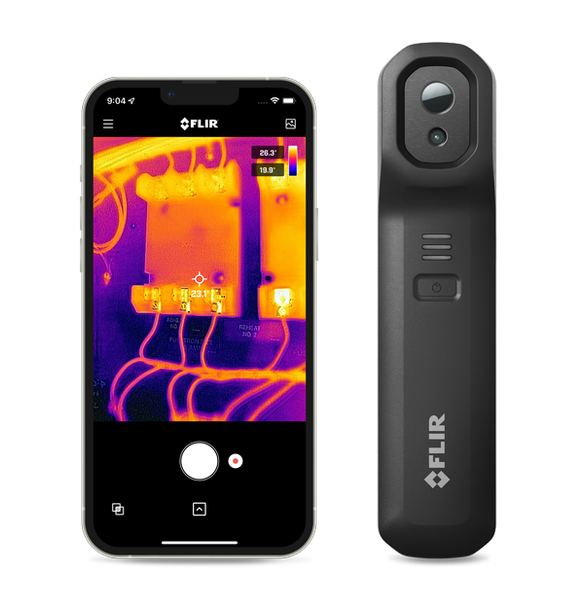

FLIR ONE Edge Pro Thermal Camera – Wireless 160 × 120 MSX® Thermal Imager

Write a Review
SKU:
11002-0201
UPC:
845188026844
Availability:
Usually ships in 3 business days
$529.00

Sold Out

Frequently bought together:

Description

The FLIR ONE Edge Pro Thermal Camera is a wireless thermal imager that clips to — or detaches from — your phone or tablet, so you can inspect energized panels, tight spaces, and high or low targets while keeping the display in your hand.

The Edge Pro provides 160 × 120 native thermal resolution (480 × 360 VividIR™ super resolution), FLIR MSX® image enhancement, and measurement up to 752°F (400°C). Its rugged, drop-tested housing connects over Bluetooth and Wi-Fi and works with iOS and Android devices alike — no connector to match, and easy one-handed scanning around corners and inside cabinets.

  • Wireless thermal camera that clips to — or detaches from — your phone or tablet, so one camera works with both iOS and Android devices
  • 160 × 120 native thermal resolution with VividIR processing up to 480 × 360 super resolution
  • Measures up to 400°C (752°F): ranges -20°C to 120°C and 0°C to 400°C
  • Remote operation up to 5 m away via Wi-Fi for inspecting hard-to-reach areas
  • MSX®, infrared, and visual image modes
  • Images save to the mobile device and upload automatically to FLIR Ignite; works with FLIR ONE app and FLIR Thermal Studio
  • Up to 2.5 hours of battery life; 15-minute quick charge gives about 40 minutes of use
  • IP54 rated and drop tested to 2 m

Typical Applications

  • Electrical panel inspections
  • Building diagnostics
  • Hard-to-reach mechanical checks
  • Fleet and facility maintenance
Model FLIR ONE Edge Pro Thermal Camera
Thermal Resolution 160 × 120 native; 480 × 360 super resolution
Battery life Approximately 2 hours 30 minutes
Object Temperature Range -20°C to 120°C and 0°C to 400°C
Accuracy ±3°C (5.4°F) or ±5% (60 seconds after start-up, unit at 15°C to 35°C, scene 5°C to 120°C)
HFOV / VFOV 54° ±1° / 42° ±1°
Image Modes Infrared, Visual, MSX
Thermal Sensitivity/NETD 70 mK
Thermal Sensor Pixel size 12 µm, spectral range 8 to 14 µm
Visual Resolution 640 × 480
VividIR Yes
Battery charge time 60–90 minutes (15 minutes = 40 minutes of use); USB-C 5V/1A
Dimensions 37.5 × 35 × 149 mm
Remote Operation Up to 5 m via Wi-Fi
Weight 153 g (5.4 oz)
Encapsulation IP54
Drop test 2 m
Device Compatibility iOS 17+ / Android 13+
Software FLIR ONE app, FLIR Ignite, FLIR Thermal Studio

Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.

FLIR Limited Warranty

The FLIR ONE Edge Pro Thermal Camera is covered by FLIR's standard limited warranty: 2 years on parts and labor and 10 years on the infrared detector, when the product is properly registered with FLIR within 60 days of the original retail purchase date.

Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
