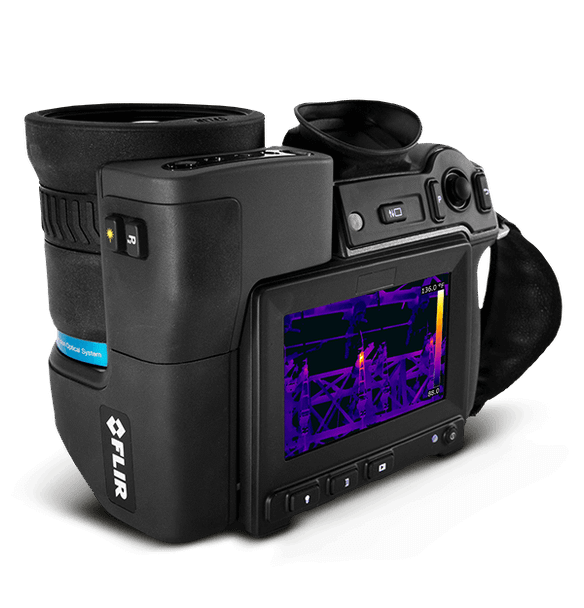

FLIR T1020 Professional Thermal Imaging Camera – 1024 × 768 High-Performance Infrared Camera
- Availability:
- Usually ships in 3 business days
Description
The FLIR T1020 Professional Thermal Imaging Camera is FLIR's flagship HD thermography camera, pairing a 1024 × 768 detector with best-in-class sensitivity and accuracy for research, utility, and industrial work.
The T1020 provides 786,432 true thermal pixels (up to 3.1 MP with UltraMax®), thermal sensitivity under 20 mK, and accuracy up to ±1°C in its calibrated range. Its OSX™ precision optics, rotating lens block, high-brightness viewfinder, and 4-inch LCD make it the camera of choice when the inspection cannot miss.
- Flagship T1K HD thermal camera: 1024 × 768 IR resolution, up to 3.1 MP with UltraMax
- Best-in-class sensitivity <20 mK at 30°C
- OSX Precision HDIR optics with continuous autofocus
- Single-lens 12°/28°/45° configurations and multi-lens combos (28°+12°, 28°+45°, 28°+12°+45°)
- Built-in 800 × 480 viewfinder plus 4.3-inch touchscreen with smartphone-like GUI
- Accuracy to ±1°C or ±1% over the 5-150°C range; measures up to 2000°C
- 120° rotating optical block and 1-Touch Level/Span
- FLIR Inspection Route mode for repeatable surveys
Typical Applications
- Research and development
- Utility inspections
- Industrial thermography
- Failure analysis
| Model | FLIR T1020 Professional Thermal Imaging Camera |
| IR Resolution | 1024 × 768 (786,432 pixels); up to 3.1 MP with UltraMax |
| Thermal Sensitivity/NETD | <20 mK @ 30°C (86°F) |
| Accuracy | ±1°C (±1.8°F) or ±1% (5°C to 150°C); ±2°C or ±2% up to 1200°C |
| Field of view (FOV) | 12° × 9° / 28° × 21° / 45° × 34° depending on lens configuration |
| Lens Configurations | 12°, 28°, 45°, 28° + 12°, 28° + 45°, 28° + 12° + 45° |
| Viewfinder | Built-in, 800 × 480 |
| Display | 4.3 in. LCD, 800 × 480, touchscreen |
| Image Frequency | 30 Hz |
| Digital Zoom | 1-8x continuous |
| Object Temperature Range | -40°C to 2000°C (-40°F to 3632°F) |
| Spot Meter | 10 ea. in live mode |
| Area | 5 + 5 (with min/max/avg) |
| Time Lapse | 15 seconds to 24 hours |
| Weight | 28° lens: 1.9 kg (4.3 lb); 45° lens: 2.0 kg (4.4 lb); 12° lens: 2.1 kg (4.6 lb) |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| Included | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR T1020 Professional Thermal Imaging Camera is covered by FLIR's standard limited warranty: 2 years on parts and labor and 10 years on the infrared detector, when the product is properly registered with FLIR within 60 days of the original retail purchase date.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
