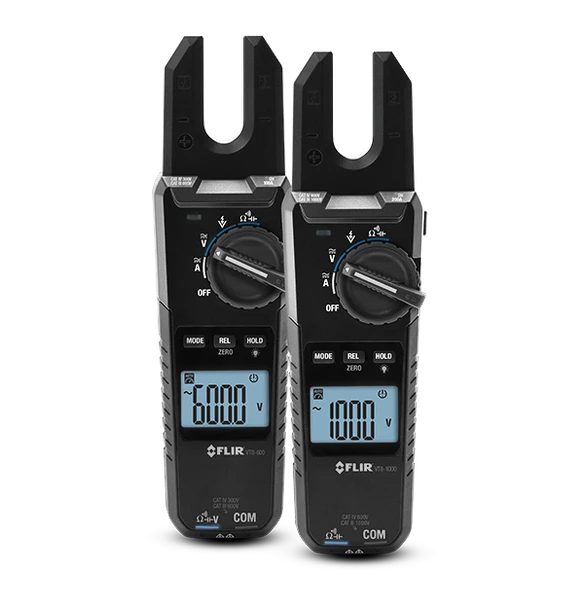

FLIR VT8-1000 Voltage, Continuity & Current Tester – 1000V Electrical Tester
- SKU:
- VT8-1000
- UPC:
- 793950386019
- Availability:
- Usually ships in 3 business days
Description
The FLIR VT8-1000 Voltage, Continuity and Current Tester is an open-jaw electrical tester that measures voltage, continuity, and current up to 200 A without breaking the circuit or fishing out test leads for every check.
The VT8-1000 handles AC/DC voltage to 1000 V with true-RMS accuracy, resistance, and diode/continuity tests, and its slim open jaw slides onto conductors in crowded panels. A built-in worklight, CAT IV-300 V / CAT III-1000 V rating, and pocketable form make it the first-grab tester for service calls.
- Your go-to troubleshooting electrical tester with True RMS AC/DC voltage and current, continuity, resistance, and capacitance
- Optimized open-jaw design takes measurements in tight spaces and measures large-diameter cables with the 15.5 mm jaw opening
- VT8-1000 model rated CAT III-1000 V / CAT IV-600 V with 200 A / 1000 V measuring ranges
- Built-in non-contact voltage (NCV) detector finds live circuits quickly for safety sweeps
- Bright LED worklight and backlit 6000-count display for poorly lit job sites
- Built-in test lead holder stows leads when not in use
- Compact, pocket-carried, one-handed ergonomic design with offset thumb-selector dial for gloved operation
Typical Applications
- Electrical service calls
- Panel troubleshooting
- HVAC service
- General voltage and current checks
| Model | FLIR VT8-1000 Voltage, Continuity & Current Tester |
| AC/DC Current Range | VT8-1000: 200 A |
| AC/DC Current Accuracy | VT8-1000: ±2.5% (50 to 60 Hz) |
| AC/DC Current Resolution | 0.1 A |
| AC/DC Volts Range | VT8-1000: 1000 V |
| AC/DC Volts Accuracy | VT8-1000: ±1.5%, ±1.0% (56 to 66 Hz) |
| AC/DC Voltage Resolution | 0.1 V |
| Safety Rating | VT8-1000: CAT III-1000 V / CAT IV-600 V |
| Non-Contact Voltage Detector (NCV) | >100 Vrms; <10 mm distance (LED/buzzer alerts) |
| Capacitance | 600 µF ±4.0%, 6000 µF ±10.0% |
| Continuity Check Threshold | 10 Ω to 100 Ω |
| Resistance | 60.00 MΩ ±(1.5%) |
| True RMS | Yes |
| Auto Range | Yes |
| Additional Measurement Functions | DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold |
| Display | 6000-count backlit multi-function LCD |
| Display Rate | Approximately 3 times per second |
| Over-Range Indication | 'OL' or '-OL' displayed |
| Polarity | Automatic display of positive and negative polarity |
| Dimensions | 210 × 53 × 35 mm (8.27 × 2.1 × 0.67 in) |
| Jaw Opening | 15.5 mm (0.61 in) |
| Worklights | White LED |
| Auto Power Off | After 15 minutes |
| Low Battery Indication | Battery symbol is displayed when batteries need changing |
| Power Source | 2 × AA alkaline batteries |
| Agency Approvals | C-UL-US, CE, RCM |
| Drop Test | 2 m (6.6 ft) |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -30 to 60°C (-22 to 140°F), batteries not installed |
| Included | Test leads, printed Quick Start guide, batteries, and carry pouch (per FLIR VT8 series user manual) |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR VT8-1000 is covered by FLIR's limited 3-year warranty for test and measurement instruments.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
