Name: Isolator/signal converter SP-11
Brand: Aplisens
SKU: SP-11
Availability: OutOfStock

Product Overview

Pricing Available Upon Request
The Aplisens SP-11 Signal Converter / Isolator is available in multiple input/output signal configurations (0–20 mA, 4–20 mA, 0–10 V). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

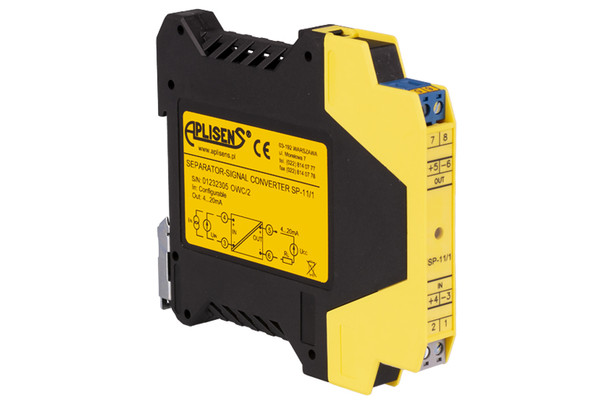

The Aplisens SP-11 is a signal converter / isolator designed to provide galvanic separation between field measurement circuits and control/PLC systems. It supports common industrial signals including 4–20 mA, 0–20 mA, and 0–10 V, with input/output configuration selected via internal switches.

Full galvanic separation between circuits for improved noise immunity
Selectable input and output signals: 0–20 mA, 4–20 mA, 0–10 V
DIN rail mount on TS35 rail (panel-ready housing)
24 VDC supply typical for control panels

If you’re not sure which input/output combination you need, send us what your transmitter outputs and what your PLC expects—we’ll match it.

Feature	Details
Input Signal (switch selectable)	0–20 mA, 4–20 mA, 0–10 V
Output Signal (switch selectable)	0–20 mA, 4–20 mA, 0–10 V
Supply Voltage	24 V ± 20%
Supply Current	≤ 100 mA
Transmission Band	5 Hz (3 dB)
Strength Test	1.5 kV AC, 50 Hz, 1 min
Ambient Temperature	5…60 °C
Ingress Protection	IP20

Typical applications include isolating measurement circuits on equipment from the main control section to reduce ground loops and interference.

SP-11 pricing depends on configuration. To quote correctly, we typically confirm:

What We Need	Examples
Input Signal	4–20 mA, 0–20 mA, or 0–10 V (what your transmitter outputs)
Output Signal	4–20 mA, 0–20 mA, or 0–10 V (what your PLC/DAQ expects)
Load / Receiving Input	Confirm PLC/controller input type so we match resistance requirements
Panel Power	24 VDC (±20%) available in your control panel
