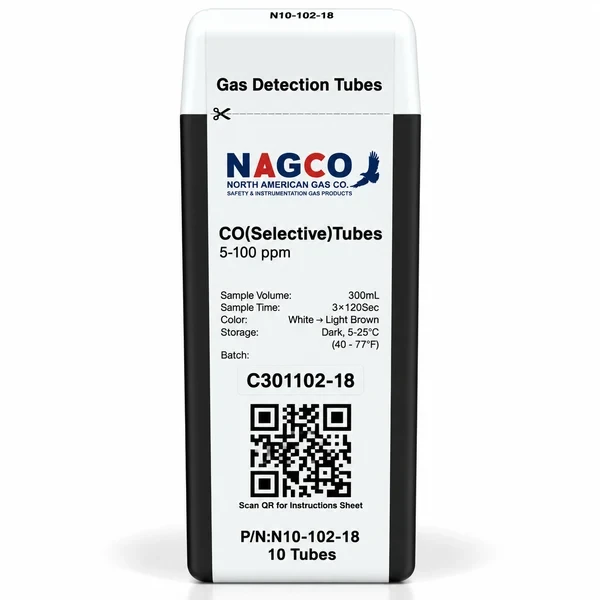

NAGCO Carbon Monoxide (CO) Selective Detector Tubes 5-100 ppm | N10-102-18

The NAGCO N10-102-18 Carbon Monoxide (CO) Selective Detector Tubes provide direct-reading measurement of carbon monoxide concentrations using a manual gas sampling pump. The standard measurement range is 5–100 ppm CO using three pump strokes for a total sample volume of 300 mL.

For applications requiring measurements outside the standard range, the N10-102-18 can also measure 2.5–50 ppm using six pump strokes or 15–300 ppm using one pump stroke with the appropriate correction factor.

Key Features

• Designed for selective carbon monoxide (CO) measurement
• Standard measurement range: 5–100 ppm
• Extended measurement ranges: 2.5–50 ppm and 15–300 ppm
• Direct-reading colorimetric detector tube
• Pretreatment layer removes most interfering compounds
• Standard measurement uses 3 pump strokes / 300 mL sample volume
• White to light brown color change
• No humidity effect from 5–100% RH under specified conditions
• No temperature effect from 0–40°C (32–104°F) under specified conditions
• No electrical power required

Specifications

• Manufacturer: NAGCO
• Part Number: N10-102-18
• Target Gas: Carbon Monoxide (CO)
• Tube Type: Selective
• Standard Range: 5–100 ppm
• Extended Ranges: 2.5–50 ppm / 15–300 ppm
• Standard Pump Strokes: 3
• Standard Sample Volume: 300 mL
• Standard Sample Time: 3 × 2 minutes
• Standard Correction Factor: 1.0
• Precision: ≤ ±15% Relative Standard Deviation
• Linearity: r² = 0.999
• Humidity: No effect from 5–100% RH
• Temperature Range: No effect from 0–40°C (32–104°F)
• Color Change: White → Light Brown
• Storage Life: 2 years in darkness at 5–25°C (40–77°F); refrigeration preferred

Measurement Ranges

• 2.5–50 ppm: 6 pump strokes / 600 mL / 6 × 2 minute sample time / correction factor 0.5
• 5–100 ppm: 3 pump strokes / 300 mL / 3 × 2 minute sample time / correction factor 1.0
• 15–300 ppm: 1 pump stroke / 100 mL / 2 minute sample time / correction factor 3.0

Cross-Sensitivity & Interferences

The N10-102-18 incorporates a pretreatment layer designed to remove most interfering compounds. NAGCO documents cross-sensitivity testing with hydrogen, nitric oxide, hydrogen sulfide, ammonia, methane, hexane, isobutylene, toluene and trichloroethylene. Other hydrocarbons may interfere, although NAGCO states that most organic vapor interferences are eliminated by the pretreatment layer. Refer to the NAGCO datasheet for complete cross-sensitivity information and test conditions.

Pump Information

NAGCO recommends using NAGCO detector tubes with NAGCO sampling pumps. CPS Calibrations can assist customers transitioning from another detector tube system with selecting the appropriate NAGCO tube and sampling equipment for their application.

Important: Detector tube readings may be affected by interfering compounds and application conditions. Always follow the NAGCO datasheet and pump operating instructions for the specific measurement being performed.

View NAGCO N10-102-18 Carbon Monoxide Selective Detector Tube Datasheet (PDF)
