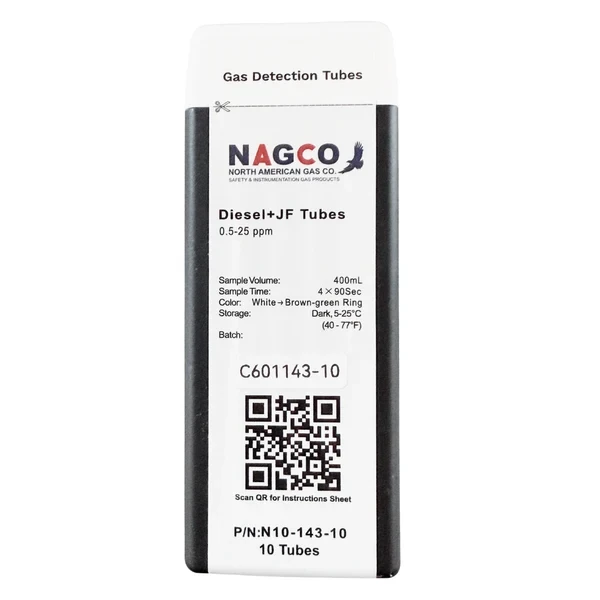

NAGCO Diesel & Jet Fuel Detector Tubes 0.5-25 ppm | N10-143-10

The NAGCO N10-143-10 Diesel & Jet Fuel Detector Tubes provide direct-reading measurement of diesel and jet fuel vapors using a manual gas sampling pump. The tube has a 0.5–25 ppm standard measurement range and is calibrated to undecane (C11H24).

The standard measurement requires 4 pump strokes for a total sample volume of 400 mL, with a sample time of 4 × 1.5 minutes. NAGCO specifies that the measurement range should not be extended. Correction factors are provided for several fuel types, including automotive or marine diesel, diesel vapors, JP-5, JP-8 and gasoline.

Key Features

• Designed for diesel and jet fuel vapor measurement
• Standard measurement range: 0.5–25 ppm
• Calibrated to undecane (C11H24)
• Correction data provided for diesel, JP-5, JP-8 and gasoline
• Direct-reading colorimetric detector tube
• Standard measurement uses 4 pump strokes / 400 mL sample volume
• White to brown-green ring color change
• Over-range indication: white to pale yellow
• Designed for industrial hygiene, fuel vapor and field gas measurement applications

Specifications

• Manufacturer: NAGCO
• Part Number: N10-143-10
• Target: Diesel & Jet Fuel Vapors
• Calibration Gas: Undecane (C11H24)
• Standard Range: 0.5–25 ppm
• Range Extension: Do not extend
• Standard Pump Strokes: 4
• Standard Sample Volume: 400 mL
• Standard Sample Time: 4 × 1.5 minutes
• Correction Factor: 1.0 for undecane
• Precision: ≤ ±20% Relative Standard Deviation for undecane
• Humidity Range: 0–95% RH with correction factors as specified
• Temperature Range: 0–40°C (32–104°F) with correction factors as specified
• Color Change: White → Brown-Green Ring
• Over-Range Color: White → Pale Yellow
• Storage Life: 1 year in darkness at 5–25°C (40–77°F); refrigeration preferred

Fuel Response & Correction Information

• Undecane: 25 ppm test concentration / 25 ppm apparent reading / correction factor 1.0
• Diesel, Whole (Automotive or Marine): 50 ppm test concentration / 20 ppm apparent reading / correction factor 2.5
• Diesel Vapors: 10 ppm test concentration / approximately 20 ppm apparent reading / approximately 0.4 correction factor
• JP-5, Whole (Kerosene): 25 ppm test concentration / 22 ppm apparent reading / correction factor 1.1
• JP-8, Whole (Kerosene): 10 ppm test concentration / 11.5 ppm apparent reading / correction factor 0.87
• Gasoline, Whole: 25 ppm test concentration / 10 ppm apparent reading / correction factor 2.5

Humidity Correction

• Below 5% RH: Correction factor 1.0
• 30% RH: Correction factor 0.8
• 50% RH: Correction factor 0.7
• 80% RH: Correction factor 0.7
• 95% RH: Correction factor 0.7

Temperature Correction

• 0°C (32°F): Correction factor 1.9
• 10°C (50°F): Correction factor 1.3
• 20°C (68°F): Correction factor 1.0
• 40°C (104°F): Correction factor 0.8

Cross-Sensitivity & Interferences

NAGCO documents response and cross-sensitivity data for a variety of compounds including carbon monoxide, carbon dioxide, methane, hydrogen sulfide, butane, propane, hexane, octane, benzene, toluene, xylene, styrene, ethanol, isopropanol and acetone. Because response varies significantly by compound, refer to the NAGCO datasheet for the appropriate correction factor and complete cross-sensitivity information.

Pump Information

NAGCO recommends using NAGCO detector tubes with NAGCO sampling pumps. CPS Calibrations can assist customers transitioning from another detector tube system with selecting the appropriate NAGCO tube and sampling equipment for their application.

Important: This tube is calibrated to undecane. Response varies depending on the specific fuel or vapor being measured, as well as humidity and temperature. Always use the applicable correction factors and follow the NAGCO datasheet and pump operating instructions when performing measurements.

View NAGCO N10-143-10 Diesel & Jet Fuel Detector Tube Datasheet (PDF)
