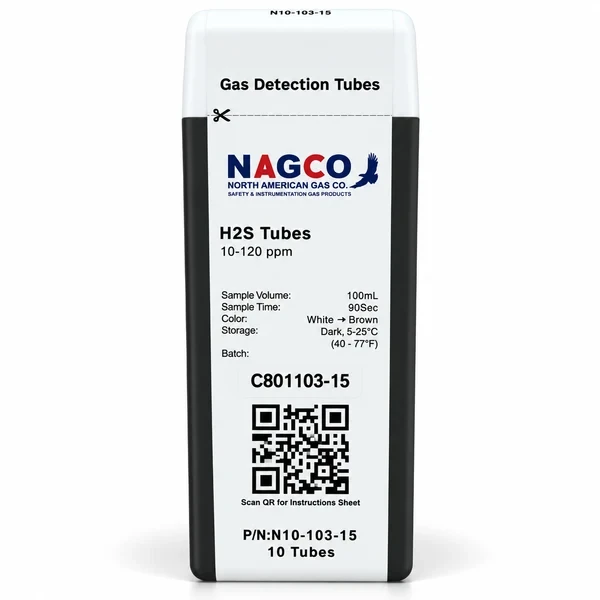

NAGCO Hydrogen Sulfide (H2S) Detector Tubes 10-120 ppm | N10-103-15

The NAGCO N10-103-15 Hydrogen Sulfide (H2S) Detector Tubes provide direct-reading measurement of hydrogen sulfide using a manual gas sampling pump. The standard measurement range is 10–120 ppm H2S using one 100 mL pump stroke with a sample time of approximately 1.5 minutes.

For applications requiring measurements outside the standard range, the N10-103-15 can also measure 5–60 ppm using two pump strokes or 20–240 ppm using a half pump stroke with the appropriate correction factor.

Key Features

• Designed for hydrogen sulfide (H2S) measurement
• Standard measurement range: 10–120 ppm
• Extended measurement ranges: 5–60 ppm and 20–240 ppm
• Direct-reading colorimetric detector tube
• Standard measurement uses 1 pump stroke / 100 mL sample volume
• Approximately 1.5-minute sample time at standard range
• No humidity effect from 5–85% RH under specified conditions
• White to brown color change
• Precision: ≤ ±12% Relative Standard Deviation
• 3-year storage life under specified storage conditions
• No electrical power required

Specifications

• Manufacturer: NAGCO
• Part Number: N10-103-15
• Target Gas: Hydrogen Sulfide (H2S)
• Standard Range: 10–120 ppm
• Extended Ranges: 5–60 ppm / 20–240 ppm
• Standard Pump Strokes: 1
• Standard Sample Volume: 100 mL
• Standard Sample Time: 1.5 minutes
• Standard Correction Factor: 1.0
• Precision: ≤ ±12% Relative Standard Deviation
• Linearity: r² = 0.999
• Humidity: No effect from 5–85% RH
• Temperature Range: 0–40°C (32–104°F); correction factors apply
• Color Change: White → Brown
• Storage Life: 3 years in darkness at 5–25°C (40–77°F); refrigeration preferred

Measurement Ranges

• 5–60 ppm: 2 pump strokes / 200 mL / 2 × 1.5 minute sample time / correction factor 0.5
• 10–120 ppm: 1 pump stroke / 100 mL / 1.5 minute sample time / correction factor 1.0
• 20–240 ppm: 0.5 pump stroke / 50 mL / 1 minute sample time / correction factor 2.0

Temperature Correction

• 0°C (32°F): Correction factor 0.88
• 10°C (50°F): Correction factor 0.96
• 24°C (75°F): Correction factor 1.0
• 40°C (104°F): Correction factor 1.1

Cross-Sensitivity & Interferences

NAGCO documents cross-sensitivity testing with carbon monoxide, methane, ammonia, nitrogen dioxide, carbon disulfide, methyl mercaptan, diethyl sulfide, isobutylene and toluene. Nitrogen dioxide may interfere when present in mixtures and may result in a transient light brown H2S response. NAGCO reports no effect in mixtures from methyl mercaptan under the specified test conditions, although concentrations in the high-percent range may leave a yellow color over the entire tube. Refer to the NAGCO datasheet for complete cross-sensitivity information and test conditions.

Pump Information

NAGCO recommends using NAGCO detector tubes with NAGCO sampling pumps. CPS Calibrations can assist customers transitioning from another detector tube system with selecting the appropriate NAGCO tube and sampling equipment for their application.

Important: Detector tube readings may be affected by temperature, interfering compounds and application conditions. Always apply the appropriate correction factors and follow the NAGCO datasheet and pump operating instructions for the specific measurement being performed.

View NAGCO N10-103-15 Hydrogen Sulfide Detector Tube Datasheet (PDF)
