Description
Please contact CPS Calibrations for a quote at 865-900-8844 or email info@cpscalibrations.com.

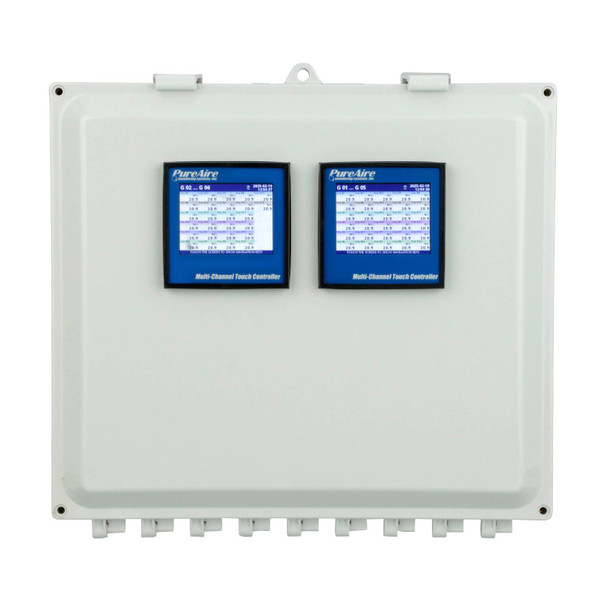

The PureAire 64-Channel Touch Screen Programmable Controller remotely operates and powers up to 64 fixed gas monitors in spaces where oxygen and other gas levels pose a safety hazard to personnel or operations.
The multi-channel controller connects up to 64 monitors — continuously measuring inert and toxic gases including, but not limited to, oxygen, carbon dioxide, helium, argon, nitrogen, ammonia, chlorine, hydrogen, methane, ethylene, and propane — from a distance of up to 100 feet.
It accepts any 2- or 3-wire gas detector and features 8 user-adjustable common alarm relays that alert personnel in the event of a gas leak or a monitor fault by controlling a horn or strobe. Individual channels can be taken offline for calibration or sensor maintenance, and each channel can be designated in PPM, PPB, or %. The LCD color touch screen displays the readings from all channels simultaneously, with trend graphs viewable over time.
Housed in a NEMA 4X / IP67 water-resistant enclosure with a built-in 24 VDC power supply and RS-485/Modbus RTU output — backed by a 2-year warranty.
- Controls and powers up to 64 fixed gas monitors or gas detectors
- Color LCD touch screen display — digital and graphic gas concentration readouts
- Accepts any 2- or 3-wire gas monitor
- 8 user-adjustable common alarm relays (horn/strobe control)
- RS-485 / Modbus RTU output
- Built-in 24 VDC power supply
- Individual channels can go offline for calibration or sensor maintenance
- Per-channel units: PPM, PPB, or %
- Trend graphs for each channel over time
- NEMA 4X / IP67 water-resistant enclosure
- 2-year warranty
| Manufacturer | PureAire Monitoring Systems |
| Part Number | 99228 |
| Channels | 64 toxic gas and oxygen monitors; 2-wire loop or 3-wire input |
| Display | Touch screen LCD graphic display, digital readout, backlit |
| Humidity | 0 – 90% non-condensing |
| Signal Outputs | 8 user-adjustable common alarm relays, NO type (1A, 24VDC) |
| Operating Temperature | -32 to +122°F |
| Communication Interface | Modbus RTU (RS-485) |
| Power Requirements | 100/240 VAC – max draw 9.8A; built-in 24 VDC power supply |
| Dimensions | 18.67 in x 20.88 in x 12.25 in (474.21 mm x 530.35 mm x 311.15 mm) |
| Weight | 6.2 lbs (2.8 kg) |
| Enclosure | NEMA 4X / IP67 water-resistant |
| Warranty | 2 years |
| Country of Origin | USA |
| Harmonized Tariff Code | 8537.10.90.60 |
