RKI 10.0 eV PID Electrode Stack for GX-6000, GX-6100 & VOC Pro
- SKU:
- 33-0563
- MPN:
- 33-0563
Description

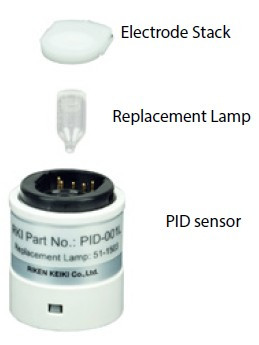

The RKI 33-0563 is a genuine RKI 10.0 eV PID electrode stack designed for compatible photoionization detector (PID) sensors used in the RKI GX-6000, GX-6100 and VOC Pro.
RKI specifies the 33-0563 for its 10.0 eV PID configuration with a measurement range of 0–100 ppm VOC and a 50 ppm benzene range. In the GX-6000 and GX-6100, this electrode stack is used with the PID-003L 10.0 eV/benzene PID sensor.
The corresponding replacement PID lamp is RKI 51-1503. The 33-0563 is supplied as one electrode stack and does not include the PID lamp or complete PID sensor.
Important: RKI offers different electrode stacks for different PID lamp energies and measurement ranges. Always verify the PID sensor configuration before ordering.
For assistance confirming the correct PID component for your RKI instrument, contact CPS Calibrations at 865-900-8844 or info@cpscalibrations.com.
- Genuine RKI Instruments replacement component
- 10.0 eV PID electrode stack
- Designed for 10.0 eV/benzene PID applications
- VOC measurement range: 0–100 ppm
- Benzene measurement range: 0–50 ppm
- Compatible with RKI PID-003L sensor
- Compatible with RKI GX-6000
- Compatible with RKI GX-6100
- Compatible with RKI VOC Pro
- One electrode stack
- PID lamp not included
- Complete PID sensor not included
- RKI part number 33-0563
| Manufacturer | RKI Instruments |
| Part Number | 33-0563 |
| Product Type | PID Electrode Stack |
| PID Lamp Energy | 10.0 eV |
| VOC Range | 0–100 ppm |
| Benzene Range | 0–50 ppm |
| Compatible PID Sensor | PID-003L |
| Corresponding Replacement Lamp | 51-1503 |
| Quantity | 1 Electrode Stack |
| PID Lamp Included | No |
| Complete PID Sensor Included | No |
RKI documentation identifies the 33-0563 electrode stack for the following equipment and PID configurations:
- RKI PID-003L – 10.0 eV/benzene PID sensor
- RKI GX-6000 – 10.0 eV PID/benzene configuration
- RKI GX-6100 – 10.0 eV PID/benzene configuration
- RKI VOC Pro – 10.0 eV PID configuration
Associated PID component:
- 51-1503 – replacement lamp used with the compatible 10.0 eV PID sensor
Important: Do not substitute another RKI electrode stack based only on appearance. RKI assigns different electrode stacks according to PID lamp energy and measurement range.
- 33-0560-01 – used with compatible 10.6 eV low-range and certain 11.7 eV configurations
- 33-0562 – 10.6 eV higher-range PID configurations
- 33-0563 – 10.0 eV, 0–100 ppm VOC / 50 ppm benzene
Always verify the PID sensor and instrument configuration before ordering.
Need help identifying the correct RKI PID component? Contact CPS Calibrations at 865-900-8844 or info@cpscalibrations.com.
