RKI Instruments

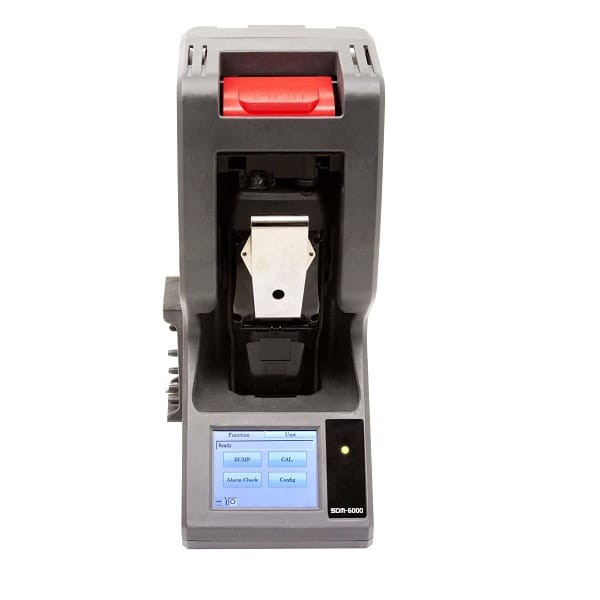

RKI SDM-6000 Docking & Calibration Station for GX-6000 Gas Monitor
- SKU:
- 81-SDM6000
Description
The RKI SDM-6000 Docking and Calibration Station is a versatile maintenance and data-management station designed specifically for the RKI GX-6000 portable gas monitor. It automates routine instrument maintenance including charging, calibration, bump testing, and alarm testing, helping facilities maintain consistent gas detector testing procedures and accurate service records.
The SDM-6000 can operate as a stand-alone calibration station with no PC required. Test and calibration records are automatically stored for future transfer to a computer using an SD card. For larger gas detection programs, multiple SDM-6000 stations can be connected together and controlled from a PC for centralized instrument maintenance and record management.
Its modular design allows up to 10 SDM-6000 stations to be connected using a single power source and calibration-gas setup. Multiple instruments can then be charged, bump tested, calibrated, and have data collected simultaneously. Up to 10 stations can also be connected to one PC for automated instrument maintenance and data archiving.
The SDM-6000 features a 3.5-inch color touch-screen display for stand-alone operation and provides Ethernet connectivity for LAN-based applications. Automated routines can even power connected GX-6000 instruments on and off to perform scheduled calibrations and bump tests.
For applications requiring additional calibration gases, the optional RKI SV-3 Solenoid Valve Module adds three additional calibration-gas inputs, allowing the system to accommodate up to six calibration gas cylinders.
- Designed specifically for the RKI GX-6000 portable gas monitor
- Stand-alone operation — no PC required for routine testing
- Automatically charges connected GX-6000 instruments
- Automated bump testing
- Automated calibration
- Automated alarm testing
- Stores test and calibration records for later retrieval
- SD and SDHC memory card compatibility
- 3.5-inch color touch-screen display
- Accepts GX-6000 monitors with or without the rubber boot
- Automatically powers instruments on and off for scheduled testing
- Modular system supports up to 10 connected SDM-6000 stations
- Simultaneously bump test, calibrate, charge, and collect data from multiple instruments
- Connected stations require no additional tubing, adapters, or data cables between stations
- One power source can support multiple connected stations
- Ethernet port for LAN connectivity
- PC controller software available for centralized instrument management
- Configure GX-6000 instrument parameters
- Centralize instrument data from multiple stations
- Schedule automatic calibration and bump testing
- Optional SV-3 valve expansion module supports up to six calibration gas cylinders
- Optional battery-powered printer available
- Wall-mount capability
Automated Maintenance Functions
- Charging: Charges the installed GX-6000 rechargeable battery
- Bump Testing: Automatically applies fresh air and calibration gas and evaluates instrument response
- Calibration: Automates fresh-air adjustment and calibration-gas application
- Alarm Check: Tests the GX-6000 buzzer, LEDs, and vibration alarm
- Data Collection: Stores calibration, bump-test, alarm, and instrument data for recordkeeping
- Scheduled Testing: Can automatically power instruments on and perform scheduled maintenance routines when configured
Modular System Capability
Facilities managing multiple GX-6000 gas monitors can connect up to 10 SDM-6000 stations. The modular system allows multiple instruments to be serviced while sharing power and calibration-gas equipment, making the SDM-6000 well suited for larger industrial safety and gas detection programs.
Optional SV-3 Gas Expansion
The SDM-6000 includes three calibration-gas inlets plus a fresh-air inlet. The optional SV-3 Solenoid Valve Module adds three additional calibration-gas inputs, expanding the system to support up to six calibration gas cylinders.
Typical Applications
- Industrial gas detection programs
- Confined-space safety programs
- Fire and rescue departments
- Refineries and petrochemical facilities
- Utilities
- Wastewater treatment facilities
- Manufacturing facilities
- Environmental and industrial hygiene programs
- Fleet management of multiple GX-6000 gas monitors
- Gas detector calibration and maintenance programs
| Model | RKI SDM-6000 |
| Compatible Instrument | RKI GX-6000 portable gas monitor |
| Operating Configuration | Stand-alone or PC-controlled |
| Display | 3.5-inch touch-panel TFT LCD, 320 × 240 QVGA |
| Status LED | 3-color LED — green, red and orange |
| Maintenance Functions | Charging, bump testing, calibration, alarm activation check and instrument data collection |
| Maximum Connected Stations | Up to 10 SDM-6000 stations |
| Gas Inlets | 3 calibration gas inlets plus 1 fresh-air inlet |
| Optional Gas Expansion | SV-3 Solenoid Valve Module adds 3 calibration gas inputs for up to 6 gas cylinders |
| Memory | SD / SDHC memory card |
| Network Connection | RJ-45 Ethernet port for LAN connection |
| Printer Connection | USB Type-A printer port |
| Power | 100–240 VAC, 50/60 Hz via AC adapter |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | Below 95% RH, non-condensing |
| Dimensions | Approximately 5.11 in W × 13 in H × 7.2 in D |
| Weight | Approximately 3.7 lb (59.2 oz) |
| Languages | English, German, Japanese, Korean, Russian, Portuguese, Spanish, Italian and French |
| Certification | CE marking |
| Warranty | 1 year |
Available accessories and included components vary by SDM-6000 ordering configuration. Calibration gas, regulators, AC adapters and other accessories may be sold separately depending on the selected package. Refer to current RKI documentation for complete configuration and operating requirements.
Product Literature
- RKI SDM-6000 Docking and Calibration Station Datasheet
- RKI SDM-6000 GX-6000 Calibration Station User Guide
- RKI GX-6000 Product Brochure
Operator's Manual
Need help with the RKI SDM-6000, GX-6000, calibration gas, or setting up a complete docking and calibration system? Call CPS Calibrations at 865-900-8844 or email info@cpscalibrations.com.
