SENKO SI-200E Explosion-SENKO SI-301 Explosion-Proof Sampling Fixed Gas DetectorProof Fixed Gas Detector
Description

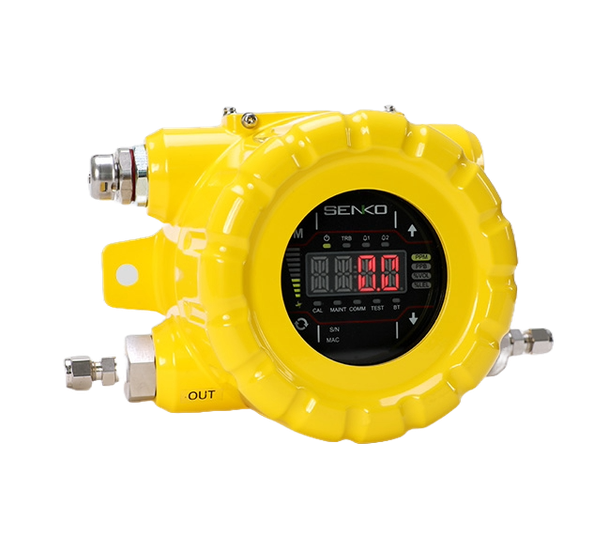

The SENKO SI-301 Explosion-Proof Sampling Fixed Gas Detector is a pumped sampling-type fixed gas detector designed for continuous real-time monitoring of oxygen, toxic, combustible, VOC, and specialty gases. Unlike a standard diffusion detector, the SI-301 uses an internal sampling system to actively draw gas through a replaceable sensor cartridge, making it ideal for remote sampling and applications where the detector cannot be installed directly at the monitoring point.
The SI-301 features a built-in flow control system with a sampling range of 100–1,000 mL/min and a normal operating flow of approximately 300–500 mL/min. Sample inlet and exhaust tubing can extend up to 30 meters, providing flexibility for industrial and process-monitoring applications.
Designed for demanding hazardous environments, the SI-301 features an explosion-proof IP65 enclosure, cartridge-style sensor for simplified maintenance, digital gas concentration and flow indication, three internal alarm relays, and multiple communication options including 4–20 mA, RS-485, TCP Ethernet, and wireless communication. The detector can be powered by 24 VDC or compatible PoE.
Detector Type: Pumped / Sampling Fixed Gas Detector
Sampling Method: Internal Pump
Available Gases: Oxygen, Toxic, Combustible, VOC & Specialty Gases
Flow Range: 100–1,000 mL/min
Normal Flow: 300–500 mL/min
Maximum Sampling Distance: Up to 30 m
Outputs: 4–20 mA, RS-485 & TCP Ethernet
Power: 24 VDC or PoE
Ingress Protection: IP65
Need help selecting the correct SI-301 gas, sensor, or detection range?
Call CPS Calibrations at 865-900-8844 or email info@cpscalibrations.com.
- Active Sampling Design: Built-in sampling system actively draws gas through the detector for continuous remote monitoring.
- Explosion-Proof Construction: Designed for use in hazardous industrial gas detection applications.
- Cartridge-Type Sensor: Replaceable sensor cartridge simplifies sensor maintenance and service.
- Built-In Flow Control: Integrated flow control provides continuous monitoring of the detector's sample flow.
- Wide Flow Range: Supports sampling flow rates from 100 to 1,000 mL/min with a normal operating range of approximately 300 to 500 mL/min.
- Remote Sampling: Supports inlet and exhaust sample tubing lengths up to 30 meters.
- Digital Concentration Display: Provides local indication of measured gas concentration.
- Digital Flow Indication: Displays current sampling flow for convenient system monitoring.
- 4–20 mA Output: Standard analog output for connection to controllers, PLCs, and facility monitoring systems.
- RS-485 Communication: Supports digital communication and Modbus integration.
- TCP Ethernet: Ethernet connectivity provides additional options for industrial system integration.
- PoE Capability: Supports 36–57 V PoE with a typical operating voltage of 48 V.
- Alarm Relays: Low alarm, high alarm, and fault relay outputs are built into the detector.
- Wireless Communication: Supports wireless configuration and communication functions.
- Multiple Sensor Technologies: Available with electrochemical, catalytic, infrared, galvanic, and PID sensor configurations depending on the selected gas.
- IP65 Protection: Rugged enclosure designed for demanding industrial environments.
| Model | SI-301 |
| Detector Type | Explosion-Proof Sampling Type Fixed Gas Detector |
| Sampling Method | Internal Pump / Active Sampling |
| Flow Rate | 100–1,000 mL/min (Normal: 300–500 mL/min) |
| Maximum Sample Flow | 1,000 mL/min |
| Maximum Sample Pressure | 3 kPa |
| Pressure Range | 90–110 kPa |
| Maximum Sampling Distance | Input: Up to 30 m / Exhaust: Up to 30 m |
| Input / Output Tube | 1/4 in. |
| Display | FND – Gas Concentration, Flow Rate, Alarm & Device Fault Status |
| DC Operating Voltage | 24 VDC ±10% |
| PoE Operating Voltage | 36–57 V (Typical: 48 V) |
| Power Consumption | Approximately 5.0 W |
| Analog Output | 4–20 mA |
| Digital Communication | RS-485 & TCP Ethernet |
| Alarm Relays | Low Alarm, High Alarm & Fault Alarm |
| Control / Setup | 4 Buttons, RS-485, Ethernet & Wireless |
| Operating Temperature | -40°C to +55°C |
| Ingress Protection | IP65 |
| Dimensions | 194 × 152.4 × 136 mm |
| Detector Weight | 4 kg (approximately 8.82 lb) |
| Device Warranty | 2 Years |
| Sensor Cartridge Warranty | 1 Year |
| Certifications | IECEx Ex db IIC T6 Gb / ATEX II 2 G Ex db IIC T6 Gb |
Available gases, sensor technologies, measuring ranges, alarm settings, and other specifications vary by detector configuration. Verify the selected SI-301 configuration before ordering.
The SENKO SI-301 supports a broad selection of oxygen, toxic, combustible, VOC, and specialty-gas sensor cartridges. Available configurations include:
- Oxygen (O₂)
- Carbon Monoxide (CO)
- Hydrogen Sulfide (H₂S)
- Ammonia (NH₃)
- Methane (CH₄)
- Hydrogen (H₂)
- Acetylene (C₂H₂)
- Ethylene (C₂H₄)
- Carbon Dioxide (CO₂)
- Hydrogen Peroxide (H₂O₂)
- Silane (SiH₄)
- Phosphine (PH₃)
- Arsine (AsH₃)
- Diborane (B₂H₆)
- Germane (GeH₄)
- VOC (PID)
- Additional semiconductor and specialty gases
Sensor technology, measuring range, resolution, and alarm settings vary by gas configuration. Contact CPS Calibrations for assistance selecting the appropriate SI-301 sensor cartridge for your application.
