Description
These Aplisens fitting accessories (valves, manifolds, adapters, sockets, and mounting brackets) are configured per application. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.
Aplisens Fitting Accessories include common installation items used with pressure and differential pressure instruments: needle valves, 2-valve manifolds, ball valves, transmission (siphon) tubes, plus adapters, fitting sockets, and mounting brackets for instrument installation on pipes or walls.

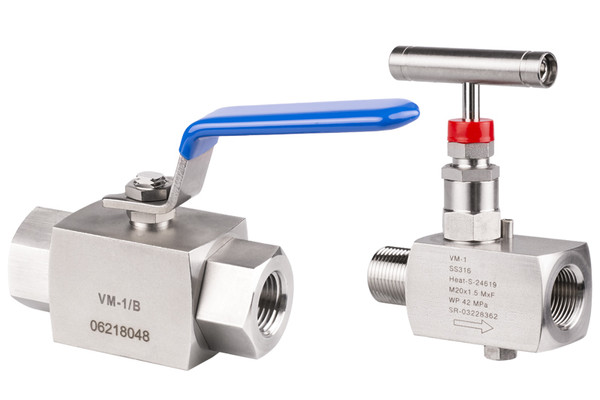

- Valves & manifolds: VM-1 needle valves, VM-2 2-valve manifolds, VM-1/B ball valve
- Common connections: M20×1.5, G1/2", and 1/2" NPT (model dependent)
- Accessories: weld connectors, clamping ring connector sets, impulse line fittings
- Mounting: brackets for transmitters (pipe/wall mounting, aluminum housing clamps, FI25 bracket)
Tell us what device you’re installing (transmitter model and process connection style), your line connection type (NPT/G/M20), and whether you need vent/test ports or high-temperature packing, and we’ll match the correct accessory.
| Accessory Group | Key Details |
|---|---|
| Needle Valve VM-1 | Material: 316 stainless steel. Versions include M20×1.5 (Teflon or Graphite packing), oxygen-clean version (Teflon), and G1/2" version (Teflon). |
| Needle Valve VM-1-R/R | Material: 316 stainless steel. 1/2" NPT F input/output versions available with Graphite packing (no vent port) or Teflon packing with vent port 1/4" NPT F (options depend on ordering code). |
| 2-Valve Manifold VM-2 | Material: 316 stainless steel. 1/2" NPT F input/output, Teflon packing, vent port 1/4" NPT F. |
| 2-Valve Manifold VM-2-RM | Material: 316 stainless steel. Versions with M20×1.5, G1/2", or 1/2" NPT connections. Teflon packing and vent port 1/4" NPT F (model dependent). NACE option available on some versions. |
| Ball Valve VM-1/B | Material: 316 stainless steel. Medium temperature up to 80°C. Maximum pressure 100 bar. Process connection: 1/2" NPT F. |
| Transmission Tube (Siphon Tube) | Temperature up to 300°C max. Pressure up to 250 bar max. Material: 321 stainless steel. Ordering example: S G1/2" (moving nut G1/2"). |
| Connectors to Weld (RedSpaw) | Materials: steel (SO) or 316 stainless steel (S). Connection options include M20×1.5 or G1/2" (as applicable). |
| Fitting Sockets | 316 stainless steel with Teflon sealing. Socket options include CG1, CG1/2, and CM30×2 (for matching transmitter process threads). |
| Adapters | 316L stainless steel adapters (Red___) for various thread conversions (G/R/NPT/M12/G1/4, etc.). Also available: M20×1.5 to Ø6×1 elastic tube adapter (brass). |
| Mounting Brackets | Universal bracket for fitting APC-2000 / APR-2000 aluminum housings on vertical or horizontal pipe (Ø30–Ø50) with material options (zinc-plated steel, SS304, SS316). Additional brackets include FI25 (for P-type connections on 25 mm pipe) and C-2" brackets (for C-type process connections; pipe or wall mounting; M10 or 7/16" UNF screw options depending on version). |
Accessory pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Accessory Type | VM-1 needle valve, VM-1-R/R, VM-2 manifold, VM-2-RM manifold, VM-1/B ball valve, siphon tube, adapter, socket, bracket |
| Connection Type | M20×1.5, G1/2", 1/2" NPT F, CM30×2, CG1/CG1/2 (as required by your instrument) |
| Packing / Service | PTFE (Teflon) vs Graphite (high-temp). Oxygen-clean version if needed. NACE option if required. |
| Vent / Test Port Needs | Vent port 1/4" NPT F required (yes/no), calibrator hook-up required (yes/no) |
| Mounting Requirements | Pipe size (e.g., 25 mm, Ø30–Ø50), pipe vs wall mount, transmitter housing style, screw standard (M10 vs 7/16" UNF) |
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your instrument model and connection type and we’ll send a formal quote.
Not sure which valve/manifold or bracket fits your transmitter? Reach out and we’ll help match the correct accessory set.
