Product Overview
The Aplisens VM-3 & VM-5 Valve Manifolds are configured per application (3-valve vs 5-valve, packing type, mounting/handle, and accessories like impulse line connectors). For accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

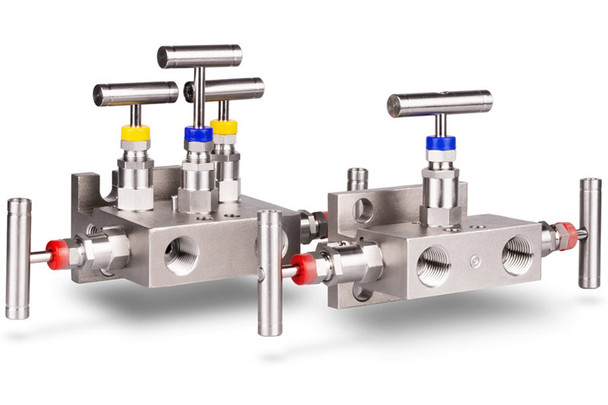

The Aplisens VM-3 (3-valve) and VM-5 (5-valve) valve manifolds are used with relative pressure transmitters. They allow essential operations such as start-up and zero setting under static or atmospheric pressure conditions. The VM-5 also allows a calibrator to be connected for metrological testing of the transmitter.
- Manifold types: 3-valve (VM-3) and 5-valve (VM-5)
- Body material: 316 stainless steel
- Purpose: isolation, equalization, vent/test connections (model dependent)
- Easy operation: precision manufacturing for smooth valve open/close
Tell us which transmitter style you have and whether you need VM-3 or VM-5 (and any special packing or accessories), and we’ll help match the correct manifold setup.
| Feature | Details |
|---|---|
| Models | VM-3 (3-valve) and VM-5 (5-valve) |
| Body Material | 316 stainless steel |
| Maximum Pressure | Up to 420 bar (depending on temperature / packing selection) |
| Pin Packing | PTFE (standard) or graphite (special version) |
| Connectors to Installation | 1/2" NPT sockets |
| Connectors to Transmitter | 54 mm spacing |
| Weight | VM-3: 1.8 kg | VM-5: 2.54 kg |
Note: Graphite packing is recommended only for valve operating temperatures above 200°C.
VM-3 / VM-5 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Manifold Type | VM-3 (3-valve) or VM-5 (5-valve; supports calibrator connection) |
| Packing | PTFE (standard) or graphite (high-temp use) |
| Special Versions | Graphite packing, Oxygen-compatible version, NACE MR-01-75 compliant version |
| Accessories | Screw sets for fitting the transmitter (M10 or 7/16" options), impulse line connectors (weldable 316ss or steel), connectors with 12 or 14 clamping ring, handle for mounting |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the correct VM-3/VM-5 configuration and send a formal quote.
Not sure if you need a 3-valve or 5-valve manifold, or which screw/connector set applies to your transmitter? Reach out and we’ll help match it.
