Description

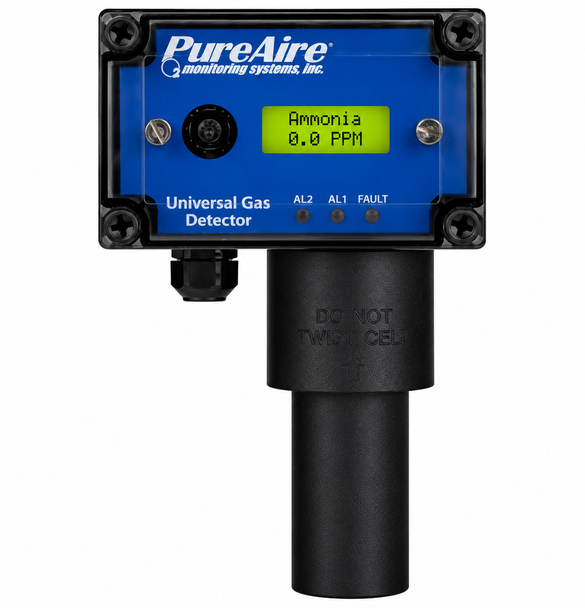

The PureAire Universal Ammonia (NH3) Gas Detector is a fixed gas monitoring system designed for continuous detection of ammonia in industrial, manufacturing, laboratory, refrigeration, and process environments.
Multiple ammonia detection ranges are available from 0–75 ppm through 0–1000 ppm, allowing the detector to be configured for the requirements of the application. PureAire's Universal Gas Detector combines a dedicated renewable electrochemical sensor with a smart transmitter/controller for continuous, real-time ammonia monitoring.
The monitor features a local digital display, built-in audible alarm, visual alarm indicators, two adjustable alarm relays, and an active 4–20 mA output for integration with PLCs, building automation systems, ventilation systems, remote alarms, and other facility safety equipment.
PureAire's Universal platform uses a renewable electrochemical sensor cell designed for long-term service. Sensor calibration information is stored with the sensor cell, allowing the Universal platform to provide flexible gas monitoring and serviceability.
Gas: Ammonia (NH3)
Available Detection Ranges: 0–75 ppm, 0–100 ppm, 0–200 ppm, 0–300 ppm, 0–1000 ppm
Monitor Platform: PureAire Universal Gas Detector
- Continuous ammonia (NH3) gas monitoring
- Multiple ammonia detection ranges available
- 0–75 ppm, 0–100 ppm, 0–200 ppm, 0–300 ppm and 0–1000 ppm configurations
- PureAire renewable electrochemical sensor technology
- Local digital concentration display
- Built-in audible alarm
- Visual alarm indicators
- Two user-adjustable alarm relay setpoints
- Active 4–20 mA analog output
- Sensor stores zero and span calibration information
- Designed for continuous fixed gas monitoring
- Compatible with PLC and facility monitoring systems
- Remote sensor configurations available
- Remote sensor cable lengths available up to 30 ft
- 24 VDC operation
- Wall-mount design
Available Ammonia Ranges
| Detection Range | PureAire Sensor / Configuration |
| 0–75 ppm | 90047 |
| 0–100 ppm | 90158 |
| 0–200 ppm | 90157 |
| 0–300 ppm | 90155 |
| 0–1000 ppm | 90118 |
| Manufacturer | PureAire Monitoring Systems |
| Product Family | Universal Gas Detector |
| Gas Detected | Ammonia (NH3) |
| Available Ranges | 0–75, 0–100, 0–200, 0–300 and 0–1000 ppm |
| Sensor Technology | Renewable electrochemical sensor |
| Display | Digital concentration display |
| Analog Output | Active 4–20 mA |
| Alarm Relays | Two user-adjustable alarm relays |
| Alarm Indication | Audible and visual alarm indication |
| Power Requirement | 24 VDC regulated |
| Remote Sensor Option | Available; remote cable lengths up to 30 ft |
| Approximate Unit Weight | 2.1 lb |
Specifications are subject to manufacturer updates. Refer to the current PureAire Universal Gas Detector instruction manual for complete installation, operation, calibration, safety and maintenance requirements.
The PureAire Universal Ammonia Gas Detector is designed for continuous NH3 monitoring in areas where ammonia leaks or releases may create a personnel or process safety concern.
Typical Applications
- Industrial refrigeration systems
- Cold-storage and refrigerated facilities
- Food and beverage processing
- Chemical processing facilities
- Ammonia storage areas
- Laboratories and research facilities
- Pharmaceutical manufacturing
- Industrial manufacturing
- Process equipment areas
- Ammonia handling and transfer areas
Gas detector placement, detection range, alarm settings, ventilation requirements, and system integration should be selected based on the specific application and facility safety requirements.
