Description

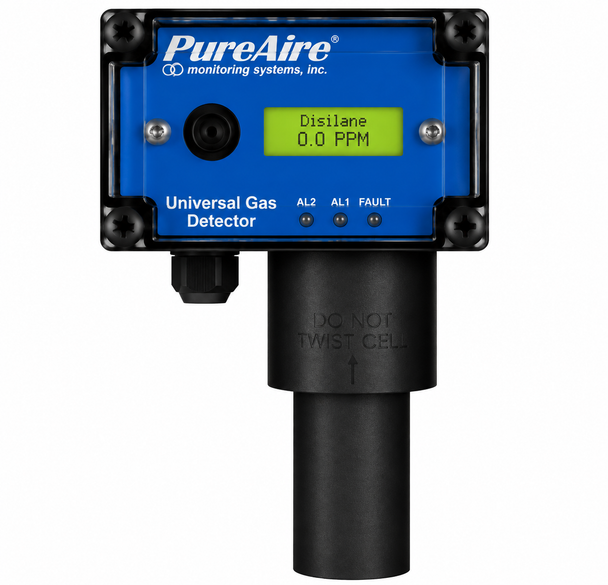

The PureAire Universal Disilane (Si2H6) Gas Detector is a fixed gas monitoring system designed for continuous detection of disilane in semiconductor manufacturing, cleanrooms, specialty-gas systems, research facilities, and other applications where Si2H6 may be present.
This configuration monitors disilane from 0–15 ppm using PureAire's renewable electrochemical sensor technology. The Universal Gas Detector combines a dedicated gas sensor with a smart transmitter/controller for continuous, real-time monitoring.
The monitor features a local digital display, built-in audible alarm, visual alarm indicators, two adjustable alarm relays, and an active 4–20 mA output for integration with PLCs, building automation systems, ventilation systems, remote alarms, and other facility safety equipment.
PureAire's Universal platform uses a renewable electrochemical sensor cell designed for long-term service and maintainability. Sensor calibration information is stored with the sensor cell to support ongoing maintenance of the monitoring system.
Gas: Disilane (Si2H6)
Detection Range: 0–15 ppm
PureAire Part Number: 90229
Monitor Platform: PureAire Universal Gas Detector
- Continuous disilane (Si2H6) gas monitoring
- 0–15 ppm detection range
- PureAire renewable electrochemical sensor technology
- Local digital concentration display
- Built-in audible alarm
- Visual alarm indicators
- Two user-adjustable alarm relay setpoints
- Active 4–20 mA analog output
- Sensor stores calibration information
- Designed for continuous fixed gas monitoring
- Compatible with PLC and facility monitoring systems
- Remote sensor configurations available
- Remote sensor cable lengths available up to 30 ft
- 24 VDC operation
- Wall-mount design
Renewable Sensor Technology
PureAire's Universal Gas Detector uses renewable electrochemical sensor technology designed for long-term operation and serviceability. The sensor stores important configuration and calibration information to support ongoing maintenance of the gas monitoring system.
System Integration
The active 4–20 mA output and adjustable alarm relays allow the detector to interface with PLCs, building automation systems, external horns and strobes, ventilation equipment, remote displays, and other facility safety systems when properly configured.
| Manufacturer | PureAire Monitoring Systems |
| Product Family | Universal Gas Detector |
| PureAire Part Number | 90229 |
| Gas Detected | Disilane (Si2H6) |
| Detection Range | 0–15 ppm |
| Sensor Technology | Renewable electrochemical sensor |
| Display | Digital concentration display |
| Analog Output | Active 4–20 mA |
| Alarm Relays | Two user-adjustable alarm relays |
| Alarm Indication | Audible and visual alarm indication |
| Power Requirement | 24 VDC regulated |
| Remote Sensor Option | Available; remote cable lengths up to 30 ft |
| Approximate Unit Weight | 1.2 lb (19.2 oz) |
Specifications are subject to manufacturer updates. Refer to the current PureAire Universal Gas Detector instruction manual for complete installation, operation, calibration, safety, and maintenance requirements.
The PureAire Universal Disilane Gas Detector is designed for continuous Si2H6 monitoring in areas where disilane is used, stored, distributed, or may be released.
Typical Applications
- Semiconductor manufacturing
- Semiconductor fabrication facilities
- Cleanrooms
- Specialty-gas systems
- Gas cabinets and gas distribution systems
- Thin-film and deposition processes
- Electronics manufacturing
- Photovoltaic and solar manufacturing
- Laboratories and research facilities
- Disilane storage and handling areas
- Process equipment areas
- Toxic-gas safety monitoring
Gas detector placement, alarm settings, ventilation requirements, and system integration should be determined based on the specific application, potential release points, facility conditions, and applicable safety requirements.
