Description

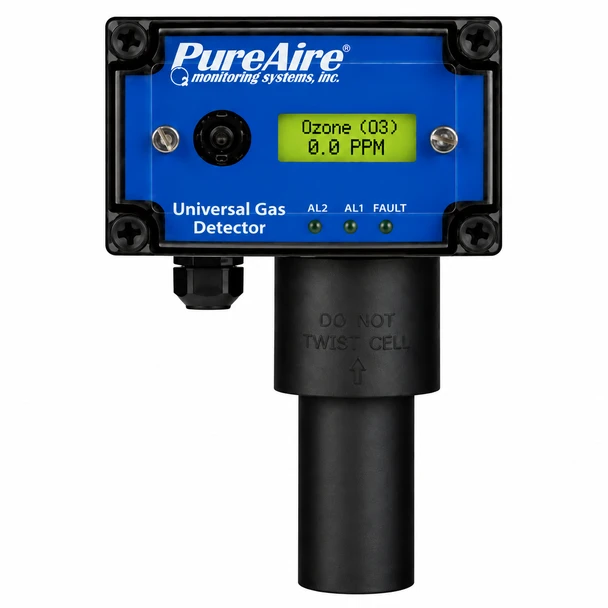

The PureAire Universal Ozone (O3) Gas Detector is a fixed gas monitoring system designed for continuous ozone detection in water and wastewater treatment, semiconductor manufacturing, food processing, printing operations, and other locations where ozone gas may be present.
This Ozone Gas Detector is available in 0–300 ppb and 0–1 ppm detection ranges, allowing the appropriate measurement range to be selected for the application. The PureAire Universal Gas Detector provides continuous, real-time ozone monitoring for facility and personnel safety applications.
The monitor features a local digital display, built-in audible alarm, visual alarm indicators, two adjustable alarm relays, and an active 4–20 mA output for integration with PLCs, facility monitoring systems, ventilation equipment, remote alarms, and other safety systems.
Because ozone can present a hazard at elevated concentrations, continuous fixed monitoring with local alarms and 4–20 mA integration can provide early warning as concentrations increase.
Gas: Ozone (O3)
Available Detection Ranges: 0–300 ppb and 0–1 ppm
Monitor Platform: PureAire Universal Gas Detector
- Continuous ozone (O3) gas monitoring
- 0–300 ppb and 0–1 ppm detection ranges available
- Local digital concentration display
- Built-in audible alarm
- Visual alarm indicators
- Two user-adjustable alarm relay setpoints
- Active 4–20 mA analog output
- Designed for continuous fixed gas monitoring
- Compatible with PLC and facility monitoring systems
- Remote sensor configurations available
- Remote sensor cable lengths available up to 30 ft
- 24 VDC operation
- Wall-mount design
Available Ozone Ranges
| Detection Range | PureAire Part Number |
| 0–300 ppb O3 | 90121 |
| 0–1 ppm O3 | 90143 |
Ozone Safety Monitoring
Ozone is a toxic, highly reactive gas that is heavier than air and is hazardous at low concentrations. Continuous fixed monitoring can provide early warning of increasing ozone concentrations for personnel safety.
System Integration
The active 4–20 mA output and adjustable alarm relays allow the detector to interface with PLCs, ventilation equipment, external horns and strobes, remote displays, and other facility safety systems when properly configured.
| Manufacturer | PureAire Monitoring Systems |
| Product Family | Universal Gas Detector |
| Gas Detected | Ozone (O3) |
| Available Ranges | 0–300 ppb and 0–1 ppm |
| Part Numbers | 90121 (0–300 ppb); 90143 (0–1 ppm) |
| Display | Digital concentration display |
| Analog Output | Active 4–20 mA |
| Alarm Relays | Two user-adjustable alarm relays |
| Alarm Indication | Audible and visual alarm indication |
| Power Requirement | 24 VDC regulated |
| Remote Sensor Option | Available; remote cable lengths up to 30 ft |
| Approximate Unit Weight | 1.2 lb (19.2 oz) |
The PureAire Universal Ozone Gas Detector is designed for continuous O3 monitoring in areas where ozone is used, stored, handled, or may be released.
Typical Applications
- Water and wastewater treatment
- Semiconductor manufacturing
- Food processing facilities
- Printing operations
- Laboratories and research facilities
- Industrial manufacturing
- Indoor air quality monitoring
- Workplace safety monitoring
Because ozone is heavier than air, detector placement should account for potential accumulation in low-lying areas and near generation equipment. Final detector location, alarm settings, ventilation requirements, and system integration should be based on the specific application and applicable safety requirements.
Product Literature
Instruction Manuals
- PureAire Universal Gas Detector Instruction Manual – Rev. 4.18
- PureAire Universal Gas Detector Instruction Manual – Rev. 4.17
Sensor & Startup Information
- Universal Electrochemical Cell Post-Shipping Startup Instructions
- PureAire Renewable vs. Disposable Sensor Comparison
Additional Product Literature
Need help selecting the correct PureAire Ozone Gas Detector range, installation, calibration, or system integration? Call CPS Calibrations at 865-900-8844 or email info@cpscalibrations.com.
