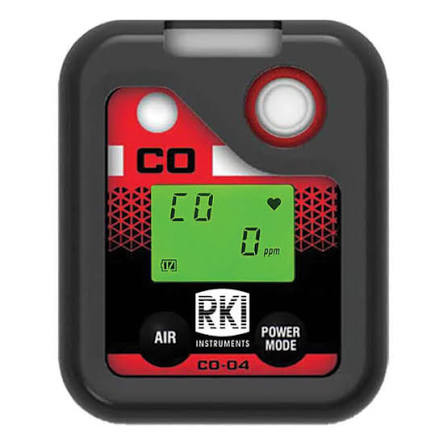

RKI CO-04C Carbon Monoxide (CO) Monitor with H₂ Compensation
- SKU:
- 73-0067
Description
The RKI CO-04C Carbon Monoxide (CO) Monitor with H₂ Compensation is a compact personal gas detector designed for continuous carbon monoxide monitoring in environments where hydrogen may be present. Its hydrogen-compensated CO sensor helps reduce interference from hydrogen, providing more reliable carbon monoxide readings in applications where standard CO sensors may be affected by H₂.
The CO-04C provides continuous monitoring of carbon monoxide from 0–2,000 ppm CO. A clear, easy-to-read display provides real-time gas readings, while audible, visual, and vibration alarms alert the user when carbon monoxide concentrations reach configured alarm levels.
Built for demanding industrial environments, the CO-04C features an IP67 impact-, dust-, and water-resistant enclosure, automatic alarm backlighting, datalogging capability, and a rotating alligator clip for convenient personal wear.
The instrument is powered by two AAA alkaline batteries and includes alkaline batteries and an alligator clip.
RKI Part Number: 73-0067
- Personal carbon monoxide (CO) monitor with hydrogen compensation
- Designed to reduce H₂ interference on CO readings
- 0–2,000 ppm CO detection range
- Diffusion sampling
- Field-replaceable sensor
- Audible, visual, and vibration alarms
- User-adjustable alarm settings
- Automatic LCD backlight during alarm conditions
- Peak-hold function
- Built-in datalogging capability
- IP67 impact-, dust-, and water-resistant enclosure
- Replaceable protective rubber boot
- 360° rotating alligator clip
- Powered by two AAA alkaline batteries
- Intrinsically safe hazardous-location approvals
Typical Applications
- Industrial facilities where hydrogen may be present
- Battery manufacturing and battery facilities
- Confined-space work
- Refineries and petrochemical facilities
- Chemical processing facilities
- Utilities
- Industrial maintenance
- Hazardous materials response
- Fire and emergency services
| Model | RKI CO-04C |
| RKI Part Number | 73-0067 |
| Gas Detected | Carbon Monoxide (CO) |
| Detection Range | 0–2,000 ppm |
| Sensor Type | Hydrogen-compensated carbon monoxide sensor |
| Sampling Method | Diffusion |
| Response Time | T90 within 30 seconds |
| Power | 2 AAA alkaline batteries |
| Continuous Operation | Up to approximately 6,200 hours, depending on operating conditions |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | 0–90% RH, non-condensing |
| Dimensions | Approx. 2.1 in W × 2.64 in H × 0.94 in D |
| Ingress Protection | IP67 |
| Alarms | Audible, visual, vibration and LCD indication |
| Safety Approvals | ATEX / IECEx; QPS C/US intrinsically safe, Class I, Division 1, Groups A, B, C & D |
| Warranty | 3 years |
| Included | CO-04C monitor, alkaline batteries and alligator clip |
Specifications are subject to manufacturer updates. Refer to the RKI CO-04C Operator's Manual for complete operating, calibration, safety and maintenance requirements.
